Description

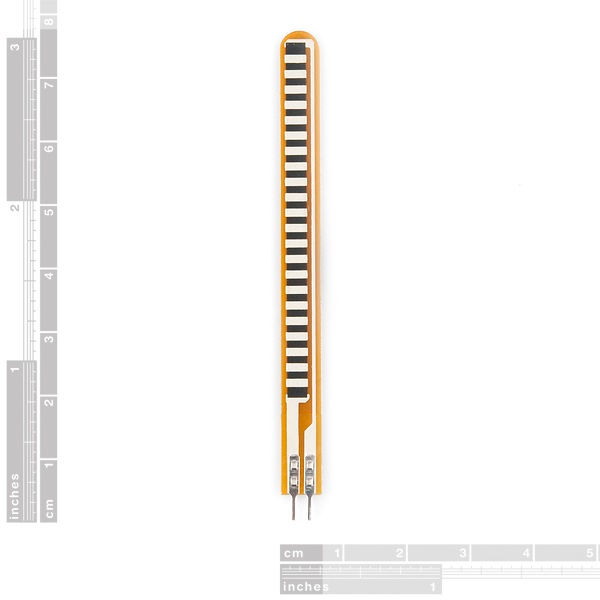

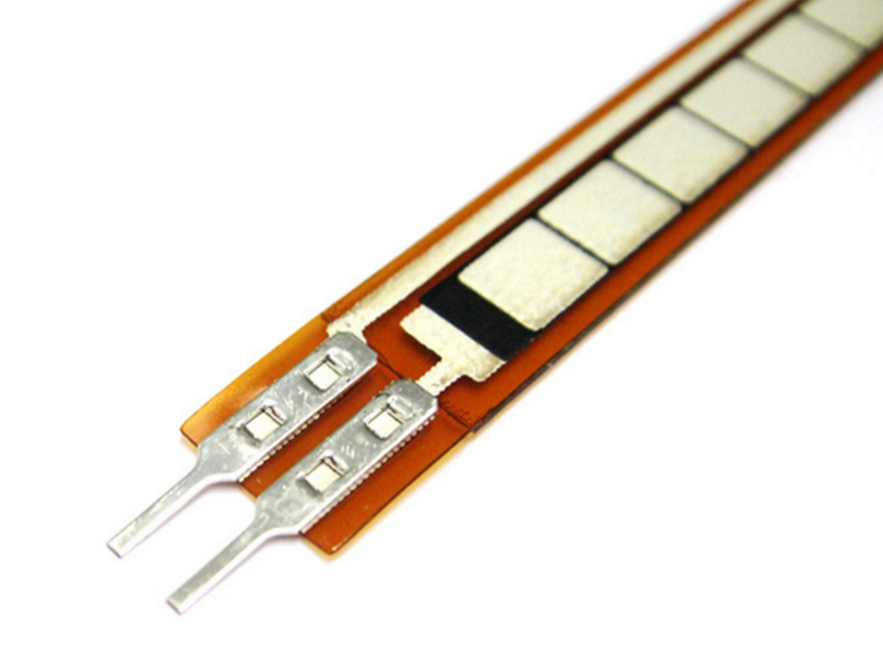

  • A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the originalNintendo Power Glove. I love the Nintendo Power Glove. The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend) Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.



Note:

  • Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.



Features:

  • Angle Displacement Measurement
  • Bends and Flexes physically with motion device



Possible Uses:

  • Simple Construction
  • Low Profile
  • Physical Therapy
  • Musical Instruments
  • Computer Peripherals
  • Medical Devices
  • Gaming (Virtual Motion)
  • Robotics



Resources

1. Interfacing Flex Sensor with Arduino – Hookup Guide and Servo Control

2. Interfacing Flex Sensor with Arduino

3. Interface Flex sensor with Arduino – Measure Bent or Deflection





2.2" Inch Bend Flex Sensor for Robotic Arm Power

USh60,000Price
