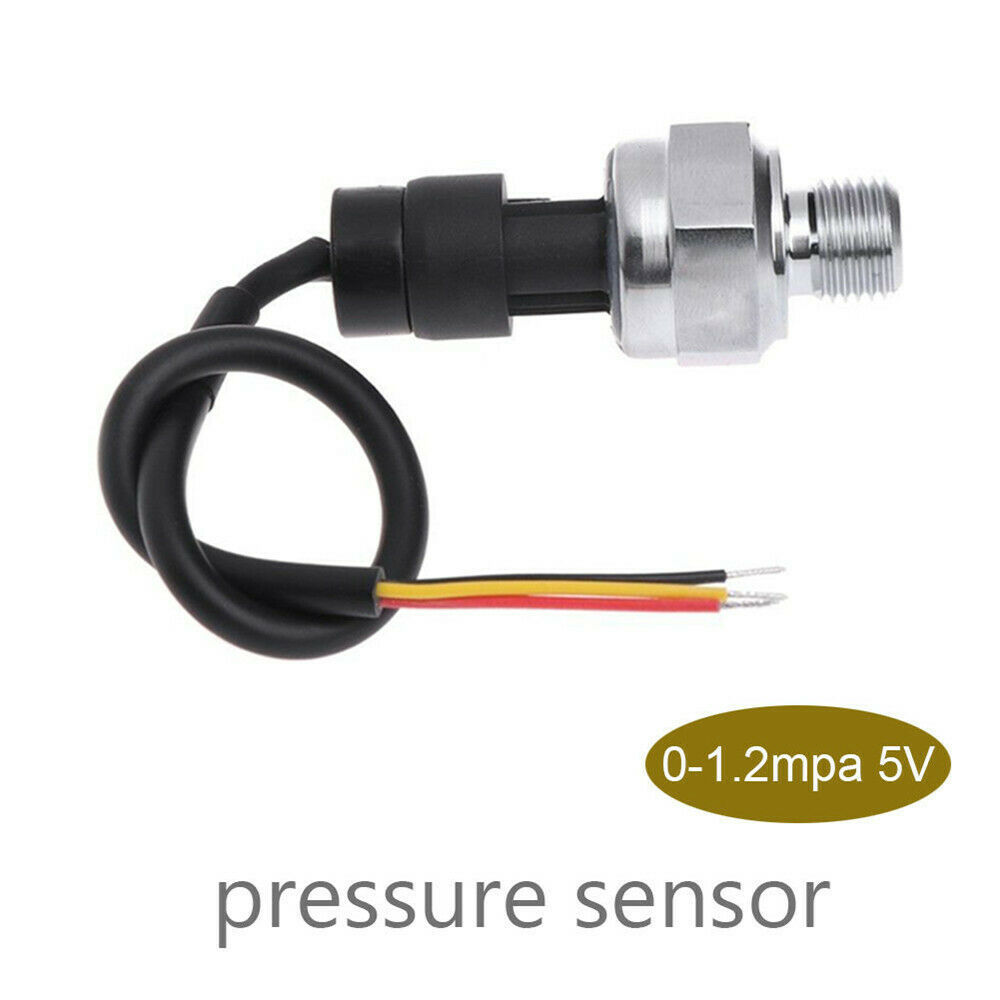

DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI For Water Gas Oil



  1. Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
  2. Suitable for civil use product batch
  3. Static accuracy: plus or minus 1.0% FS
  4. Pressure range 0-1.2 MPa
  5. Wide range of temperature compensation
  6. Medium for non-corrosive gas, water, oil, etc



NOTE:
It is not compatible with cars according to User Experience, it caused the working Temp. range is 0-85 Celsius Degree,please note! Thanks!



Typical Application: Non-corrosiveness Liquid pressure survey

Specifications:
Working Voltage: 5VDC
Output Voltage: 0.5-4.5 VDC
Sensor material: Carbon steel alloy
Working Current: ≤10 mA
Working Pressure Range: 0-1.2 MPa
The Biggest Pressure: 2.4 MPa
Cable length: 19cm
Destroy Pressure: 3.0 MPa
Working TEMP. Range: 0-85 degrees
Storage Temperature Range: 0-100 degrees
Measuring Error: ±1.5 %FSO
Temperature Range Error: ±3.5 %FSO
Response Time: ≤2.0 ms
Cycle Life: 500,000 pcs


Application: non-corrosive gas liquid measurement



Features:
Easy removal, carbon steel connection more firmly.
Stainless steel is durable, sealed waterproof line, imported chips.


Wiring: red +, black -, yellow output

DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI

USh68,000Price
