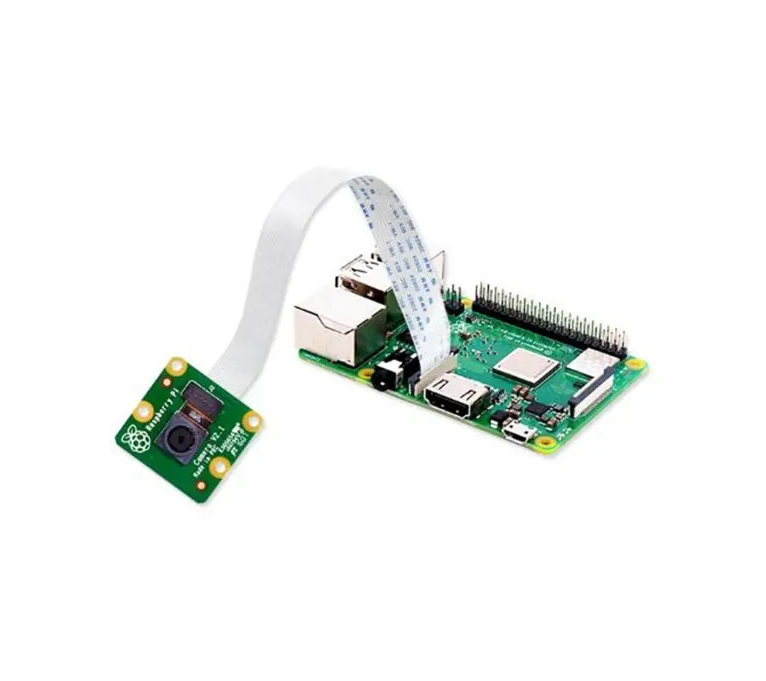

HD 8MP Raspberry Pi Camera Module V2 With IMX219 Image Sensor Works For Pi 3B 3B+ 4B

The Raspberry Pi Camera Board v2 is a high quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60, and 640x480p90 video.
It attaches to the Pi by way of one of the small sockets on the board's upper surface and uses the dedicated CSi interface, designed especially for interfacing to cameras.


Product
Name
Raspberry Pi Camera Module V2
Sensor
Sony IMX219 PQ CMOS image sensor in a
fixed-focus module
Resolution
8MP (still picture resolution 3280 x 2464)
Max image
transfer
rate
1080p: 30fps (encode and decode) 720p: 60fps
Connection
to
Raspberry
Pi
15CM 15-pin ribbon cable, to the dedicated 15-pin MIPI Camera Serial Interface
control
functions
Automatic exposure control Automatic white
balance
Automatic band filter
Automatic 50/60 Hz luminance detection
Automatic black
level calibration
Lens size
1/4”
Dimensions
25mm x 23mm x 9mm
Supported OS
Raspbian / Ubuntu (latest version recommended)
Supported
Pi Board
PI 3B/3B+/4B (if want work with PI Zero model ,
need to purchase the Pi zero board camera cable seperately )
