Description:
The LM2577 boost module (step-up converter) is a DC-to-DC power converter that steps up voltage from its input (supply) to its output (load). It is a class of switched-mode power supply (SMPS) containing at least two semiconductors (a diode and a transistor) and at least one energy storage element: a capacitor, inductor, or the two in combination. To reduce voltage ripples, filters made of capacitors (sometimes in combination with inductors) are normally added to such a converter's output (load-side filter) and input (supply-side filter).

Features:
Wide Input voltage: 3.5V-35V
Output Voltage: 4-35V (Adjustable)
Output current: rated current 3A MAX ( Heat-sink Needed)
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 50KHz
Rectifier: Non-Synchronous Rectification
Short circuit protection: current limiting, since the recovery
High-quality PCB FR4 Grade with FPT Certified

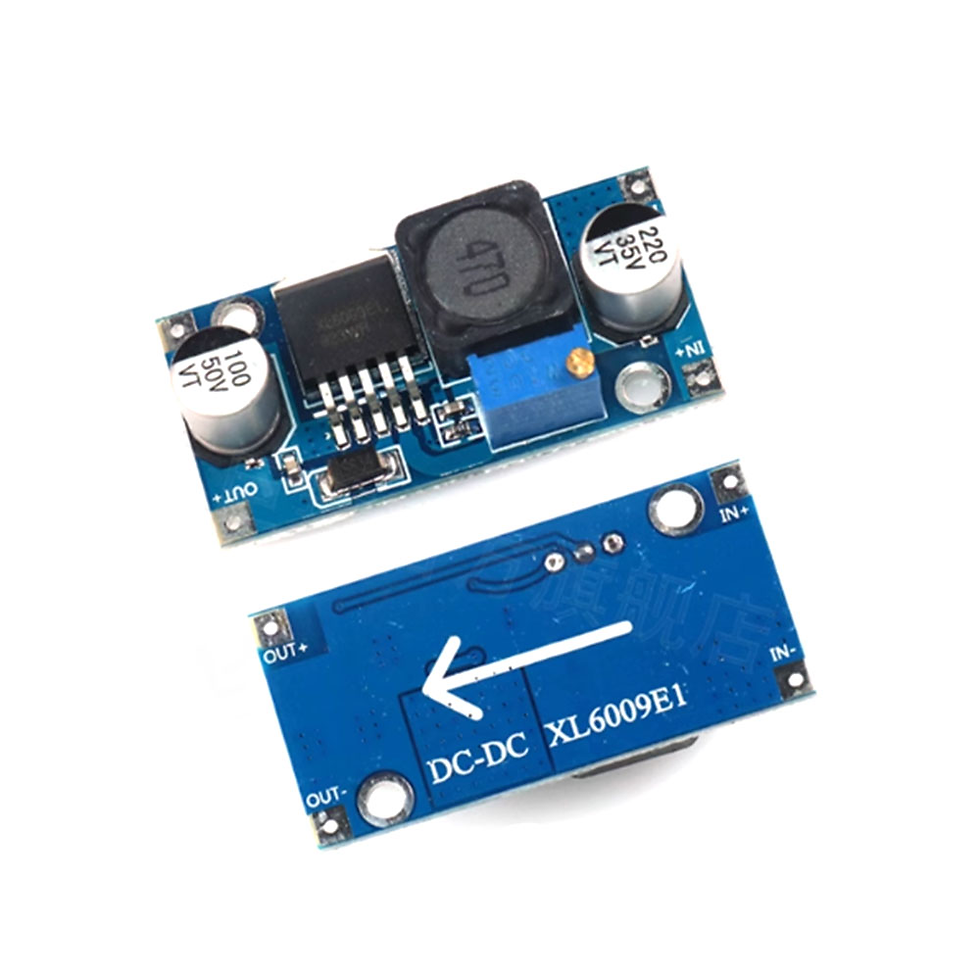

XL6009E DC-DC Booster Board
Features :
Modules nature: Non-isolated step-up (Boost)
Rectification: Non-synchronous rectification
Input voltage: 3V-32V
Output voltage: 5V-35V
Input current: 4A (max), No-load current 18mA
Conversion efficiency: 94% (highest)
Switchig frequency: 400KHz
Output ripple: 50mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Operating Temperature: -40 ° C to +85 ° C
Dimension: 47 x 22 x 13 mm
Short Circuit Protection: NONE

Applications:
DIY a mobile power supply
Boost charger
Power supply for electronic equipment
