RP2040-Zero RP2040 for Pi Microcontroller Development Board Module Dual-core M0+ Processor 2MB Flash


Product Features:

  • The RP2040 microcontroller chip is designed by Pi
  • It is powered by a dual-core ARM M0+ processor and runs at up to 133MHz flexible clock
  • It comes with 264KB ofSRAM and 2MB of on-chip Flash
  • Real stamp hole design, can be directly welded into the self-designed base plate
  • USB1.1 host and device support
  • Supports low power sleep and hibernation modes
  • Can be identified by USB as mass storage for support type download program
  • 29 GPI0 pins of RP2040 (20 can be led by row pins, the rest can only be led by welding)
  • 2 SPIs, 2 12Cs, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
  • Accurate on-chip clock and timer
  • Temperature sensor
  • On-chip accelerated floating point library
  • Eight programmable I/0 (PI0) state machines for custom peripheral support



1. RP2040-Zero  Overview

2. Raspberry Pi RP2040-Zero User Guide

3. RP 2040-Zero Quick Intro

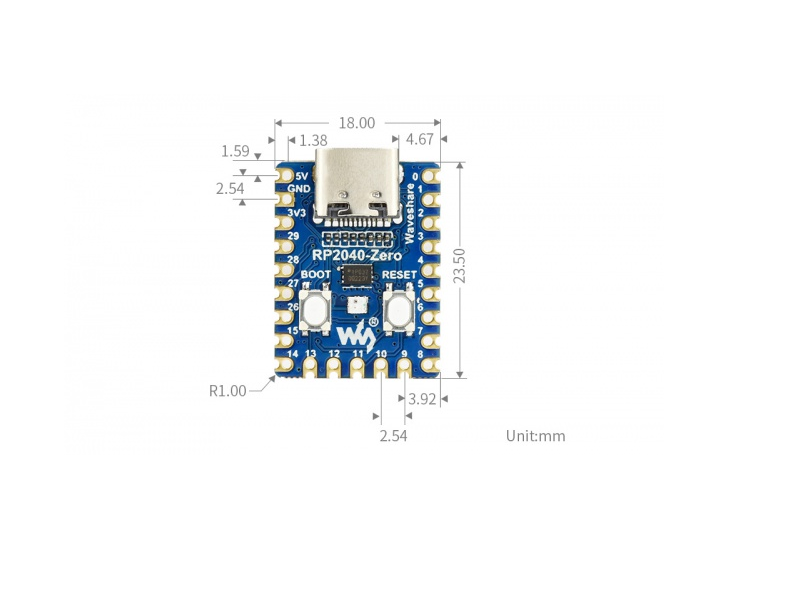

RP2040-Zero Development Board Raspberry Pi RP2040 Support Micropython
