The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz.



TOF or Time of flight is a commonly used method to measure the distance of distant objects by various distance measurement sensor like ultrasonic sensor. The measurement of the time taken by a particle, wave or an object to travel a distance through a medium is referred to as Time-of-flight (TOF). This measurement can then be used to calculate the velocity or path length. It can also be used to learn about the particle or properties of the medium such as composition or flow rate. The traveling object can be detected directly or indirectly.

Ultrasonic distance measuring devices are one of the earliest devices using the principle of time of flight. These devices emit an ultrasonic pulse and measure the distance to a solid material based on the time taken by the wave to bounce back to the emitter. We used Ultrasonic sensor in many of our application to measure the distance.



The TOF principle is used for measuring the distance between a sensor and an object. The time taken by the signal to reach back to the sensor after reflecting from an object is measured and it is used to calculate the distance. Various types of signals (carriers) like sound, light can be used with the TOF principle. When TOF is used for range finding it is very powerful when emitting light rather than sound. Compared to ultrasound it provides faster reading, higher accuracy and greater range still maintaining its low weight, small size, and low power consumption characteristics.



Applications

  1.  User detection (autonomous low-power mode) to power on/off and lock/unlock devices like personal computers/laptops and the IoT
  2. Service robots and vacuum cleaners (long distance and fast obstacle detection)
  3. Drones (landing assistance, hovering, ceiling detection)
  4. Smart shelves and vending machines (goodsinventory monitoring)
  5. Sanitary (robust user detection whatever the target reflectance)
  6. Smart building and smart lighting (people detection, gesture control)
  7. 1 D gesture recognition
  8. Laser assisted autofocus which enhances the camera autofocus system speed and robustness, especially in difficult scenes (low light and low contrast) and video focus tracking assistance



Resources

1. Datasheet for VL53L1X

2. Interfacing VL6180 ToF Range Finder Sensor with Arduino for Distance Measurement

3. VL6180 Hookup Guide

4. VL53L0X Arduino Interfacing and Programming

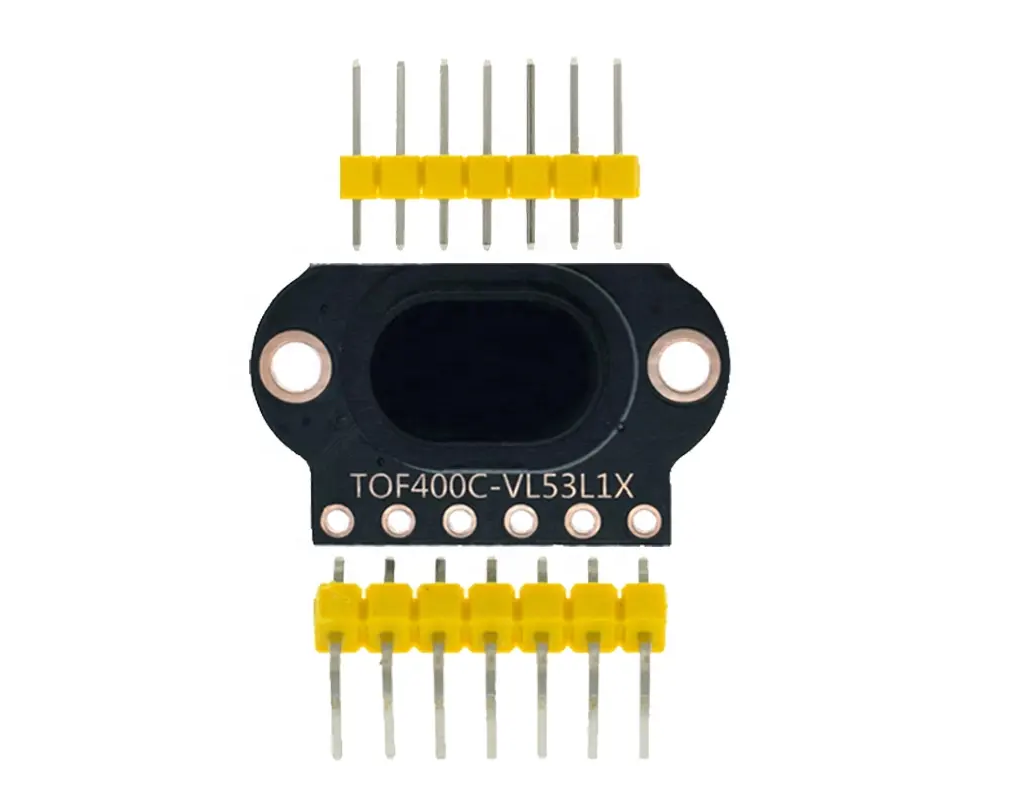

VL53L1X Time of Flight (ToF) Laser Ranging Sensor Module TOF200C - 400cm
